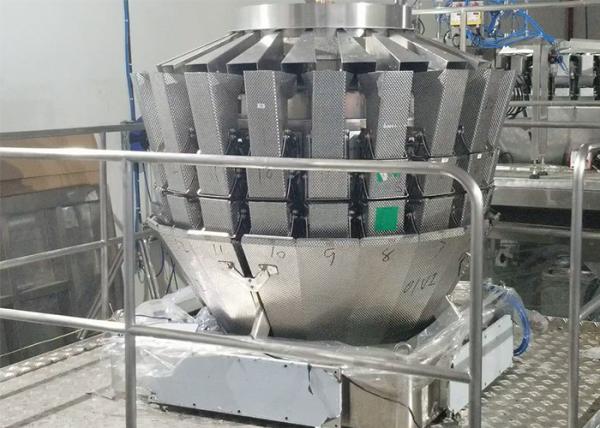

16 Head Multihead Weigher For Weighing Snack Food With Three Layers Hoppers
The four-generation three-layer 16-head multihead weigher adopts a newly added memory hopper, which can temporarily store weighing materials, which increases the probability of combination and effectively improves the accuracy of weighing. With 16 hoppers in three layers, the weighing speed is increased. The separate main vibrating plate can mix and weigh two materials at the same time.
Features
- Special sensors with high precision and high standards.
- Intelligent multiple sampling stabilization modes with more accurate weighing.
- Intelligent fault alarm prompt, more convenient maintenance.
- High-speed asynchronous feeding function effectively prevents material blocking.
- The new highly integrated modular design features CAN bus technology.
- Modbus industry-standard communication protocol, the combination of scales, and packaging machine interface into one.
Mechanical character
- Adopt a separate main vibration plate, which can be used for two kinds of mixed materials.
- An independent main vibration machine is used to control the feeding thickness of different materials.
- The newly added memory hopper realizes the temporary storage of weighing materials, increases the combination probability, and effectively improves accuracy.
- The integrated welding of the mouth-shaped chassis and the middle seat greatly enhances the strength of the machine and makes the stabilization time of the hopper shorter.
Technical specification
| Model | JW-A16 |
| Identify Code | A16-4-2 |
| Weighing Range | 10-1000g |
| Accuracy | X(0.5) |
| Max Speed | 120x2P/M |
| Hopper Volume | 1.6L |
| Control Panel | 10.1” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/2300W/50/60Hz/11A |
| Packing Dimension(mm) | 1860(L)x1200(W)x1540(H) |
| Gross Weight | 650kg |
Application
It is suitable for weighing various granular, flaky, round and irregular materials, hardware, etc.
More than 10 years, we have been adhering to "stability is the key to save" and "professional manufacturing, excellent quality, integrity management" these concepts, and we will make effort to combine weighing packaging technology with advanced automated production systems together, thus create more stable and efficient automatic weighing and packaging systems. Also, we make an effort to promote industrial automation, production cost savings, improve production efficiency, and make unremitting efforts to be an innovative and respected global enterprise.
Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
